Implants Titanium Alloy Bar/ Rod

Short Description:

Implants Titanium Alloy Bar / Rod contains the material grade of Gr5(Ti-6Al-4V), Ti-6Al-4V ELI(Grade 23) , Ti-6Al-7Nb and other alloy grades, the stated grades are the most used implants material.

Mainly used for Spinal, Trauma, Hip and Knee joints. XINNUO company is specialized in producing medical implants titanium alloy bars / rods, certified with ISO 13485 and ISO 9001.


Product Detail

Product Tags

Implants Titanium Alloy Bar (Rod)

Most used grades are

Gr5(Ti-6Al-4V), Gr23(Ti-6Al-4V ELI), Ti-6Al-7Nb

Standard

ASTM F136, ISO 5832-3, ASTM F1295/ISO 5832-11

Diameter

3-100mm

Tolerance

h7, h8, h9

Surface

Polished

Straightness

Within 1.5‰

Characteristic

We can do your high performance customized products

Specifications

Chemical compositions

Grade

Ti

Al

V

Fe,

max

C,

max

N,

max

H,

max

O,

max

Ti-6Al-4V ELI

Bal

5.5~6.5

3.5~4.5

0.25

0.08

0.05

0.012

0.13

Grade 5 (Ti-6Al-4V)

Bal

5.5~6.75

3.5~4.5

0.3

0.08

0.05

0.015

0.2

Ti-6Al-7Nb

Bal

5.5~6.5

Nb: 6.5~7.5

0.25

0.08

0.05

0.009

0.2

Mechanical properties

Grade

Condition

Tensile Strength (Rm/Mpa) ≥

Yield Strength (Rp0.2/Mpa)

Elongation (A%)

Reduction of Area (Z%)

Ti-6Al-4V ELI

M

860

795

10

25

Grade 5 (Ti-6Al-4V)

M

860

780

10

/

Ti-6Al-7Nb

M

900

800

10

25

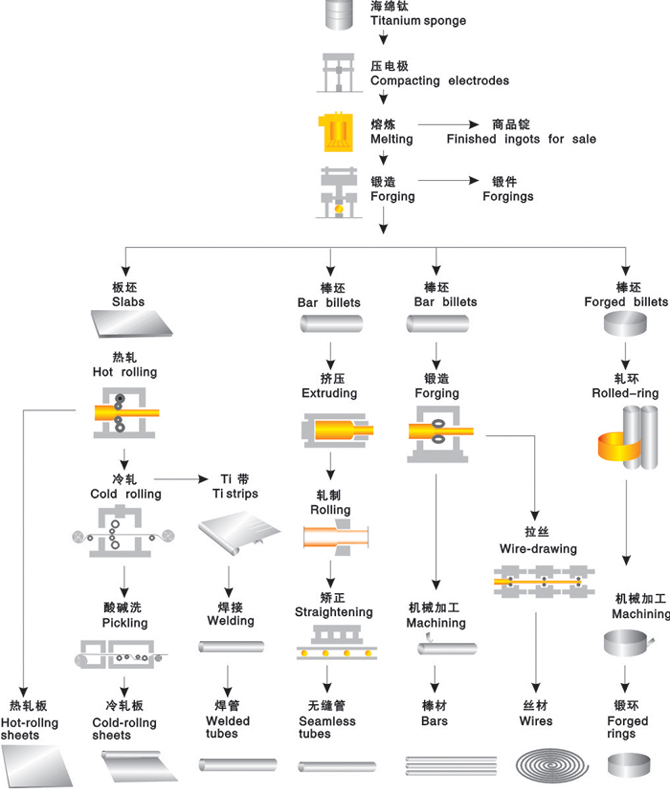

General production process of titanium bar, wire and plate

General production process of titanium bar, wire and plate

XINNUO imported German ALD Vacuum Oven to melt the titanium ingot by self since 2016, melt 3 times to ensure the chemical compositions’ even, and marking the heat number from titanium ingot to every later production processes, printing it on the final polished bars for later tracking.

General production process of titanium bar, wire and plate3
General production process of titanium bar, wire and plate2

With every batch of goods, we test the tensile strength by our Tension Tester and also take sample to the third party lab, supply Mill Test Certificate to customers.

General production process of titanium bar, wire and plate4
General production process of titanium bar, wire and plate5

100% ultrasonic flaw detected, heat number and production process are traceable, and XINNUO takes the goods’ quality as the first important thing during the whole production process, will not let the unqualified products delivered out of factory, responsible for every batch of goods supplied.
